Plastic Injection Molding Chiller

You need an APT water chiller for your plastic injection moulding machine.

APT Water Chiller for the molding mould of plastic processing/injection machinery can:

  • Greatly improve the surface finish of plastic products
  • Reduce the surface striation and internal stress of plastic products
  • Make the products Not Shrink or Deform
  •  Facilitate the demoulding of plastic products
  • Accelerate the shaping of products, and greatly improve the production efficiency of plastic molding machine

How To Select The Appropriate Size Of Chiller According To The Mold Size Of Injection Molding Machine

Ordinary, injection molding machine clamping force between 80 tons and 100 tons of machines equipped with the machine is 5HP

There is a table for your reference>>

You should know the kinds of raw materials used and the quantity used per hour. That would be more accurate, won’t waste energy efficiency.

Water Cooling Box Type Industrial Water Chiller For Injection Molding Machine​

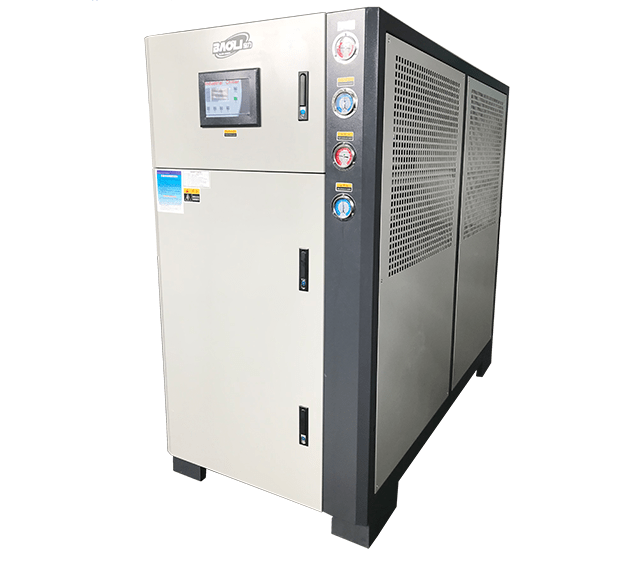

water cooled industrial chiller-20HP1

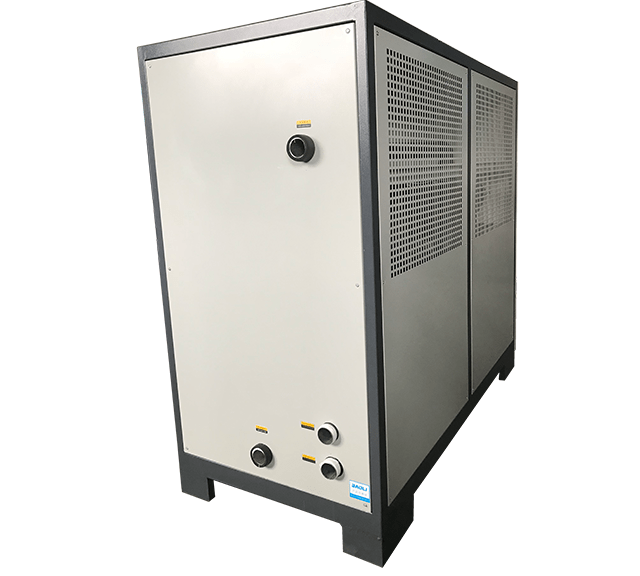

water cooled industrial chiller-20HP2

Compact Structure, Long Service Life, High Energy Saving Efficiency



  • Original compressor: environmental protection, high stability, long life, power saving and energy saving [Daikin, Copeland, national, maneurop, Sanyo];
  • Low energy consumption water pump: large flow and high head, to meet the water conditions of various equipment;
  • High precision pressure controller: protect compressor and main components accurately and quickly;
  • Microcomputer temperature controller: it can control water temperature from + 3 ° C to + 25 ° C with display accuracy of 0.1 ° C;
  • Shell and tube condenser: spiral copper tube has strong heat transfer efficiency, long service life, easy cleaning and maintenance, and is the main component of traditional central air conditioning;
  • Stainless steel water tank coil evaporator: easy to clean and maintain, clear understanding of the actual situation of water equipment;
  • Protection device: voltage undervoltage, power supply phase loss, wrong phase protection, compressor current overload protection, pump current overload protection, high and low pressure protection, antifreeze protection, insufficient cooling water flow, insufficient chilled water flow protection, and delayed start-up, etc. safety protection device can alarm and display fault.

Technical Parameter for 3-100HP Water-Cooled Chiller

Model APTBL-3WCS APTBL-5WCS APTBL-8WCS APTBL-10WCD APTBL-12WCD APTBL-15WCD APTBL-20WCD
Cooling Capacity W 9000 15000 24000 30000 36000 45000 60000
Compressor Motor KW 2.5 4.5 6.4 8.2 9.6 12 16
Cooling Water Flow L/min 34 56 88 114 146 169 220
Cooling Water In/Out pipe inch 1" 1" 1.5" 1.5" 1.5" 1.5" 2"
Frozen Water Flow L/min 25 43 69 86 104 130 173
Frozen Water In/Out pipe inch 1/2" 1/2" 1" 1.5" 1.5" 1.5" 2"
Pump Motor HP 0.5 0.5 1 1 2 2 3
Water tank capacity L/min 45 50 120 120 160 200 250
Net Weight Kg 100 140 280 350 400 480 600
Dimension L*W*H (mm) 850*520*900 850*520*900 1300*700 *1200 1300*700 *1200 1300*700 *1300 1300*700 *1300 1600*750 *1500
Power Supply 3N-380V/50Hz
Refrigerant R22/R407c/R410a/R134a
Throttle device Capillary Tube/Expansion valve
Condenser Shell and tube condenser
Evaporator Stainless steel water tank copper coil evaporator / Shell and tube evaporator for over 60HP
Model APTBL-25WCD APTBL-30WCD APTBL-40WCD APTBL-50WCD APTBL-60WCD APTBL-80WCD APTBL-100WCD
Cooling Capacity W 75000 90000 120000 150000 180000 240000 300000
Compressor Motor KW 20 24 32 41 49.2 65.6 82
Cooling Water Flow L/min 290 337 450 580 700 900 1200
Cooling Water In/Out pipe inch 2.5" 2.5" 3" 3" 3" 4" 4"
Frozen Water Flow L/min 216 260 345 430 517 690 870
Frozen Water In/Out pipe inch 2" 2.5" 3" 3" 3" 4" 4"
Pump Motor HP 3 3 5.5 7 7 10 10
Water tank capacity L/min 300 350 500 800 800 1000 1200
Net Weight Kg 700 800 980 1100 1200 1400 1500
Dimension L*W*H (mm) 1900*900 *1500 1900*900 *1500 2300*1000 *1600 2300*1000 *1600 2500*1000 *1600 3000*1300 *1600 2800*1500 *1600
Power Supply 3N-380V/50Hz
Refrigerant R22/R407c/R410a/R134a
Throttle device Capillary Tube/Expansion valve
Condenser Shell and tube condenser
Evaporator Stainless steel water tank copper coil evaporator / Shell and tube evaporator for over 60HP

1. The cooling capacity is based on the following standard temperature conditions :

1)Chilled water return temperature 12 ° C, Chilled water outlet temperature 7 ° C

2)Cooling water inlet temperature 30 ° C , Cooling water inlet temperature 35 ° C

2. Scope of working Temperature

1)Cooling water outlet temperature 22 ° C to 37 ° C , Cooling water temperature difference 3.5 ° C to 6.5 ° C

2)Chilled water outlet temperature 5 ° C to 20 ° C , Chilled water outlet temperature difference 2.5 ° C to 7 ° C
